Finding an Initial Probe Pose in Teleoperated Robotic Echocardiography Via 2D LiDAR-Based 3D Reconstruction
Mariadas Capsran Roshan, Edgar Mauricio Hidalgo Florez, Mats Isaksson, Michelle Dunn, Jagannatha Charjee Pyaraka
AI summary
Problem
Teleoperated robotic echocardiography reduces diagnostic delays but currently requires lengthy, expert-dependent manual probe placement. Existing vision-based automation methods fail in clinical settings due to sensitivity to lighting, texture, and anatomical variability.
Approach
The system uses a robot-mounted 2D LiDAR to perform two linear sweeps across the chest, reconstructing the surface in 3D. Scale-augmented rigid registration then aligns this reconstruction with anatomical templates to automatically compute the optimal initial probe position and orientation.
Key results
- First 3D human surface reconstruction using robot-mounted 2D LiDAR
- Extrinsic calibration achieving 1.82 mm RMS residual and <0.2° rotational uncertainty
- Mannequin validation yielding 2.78±0.21 mm mean surface reconstruction error

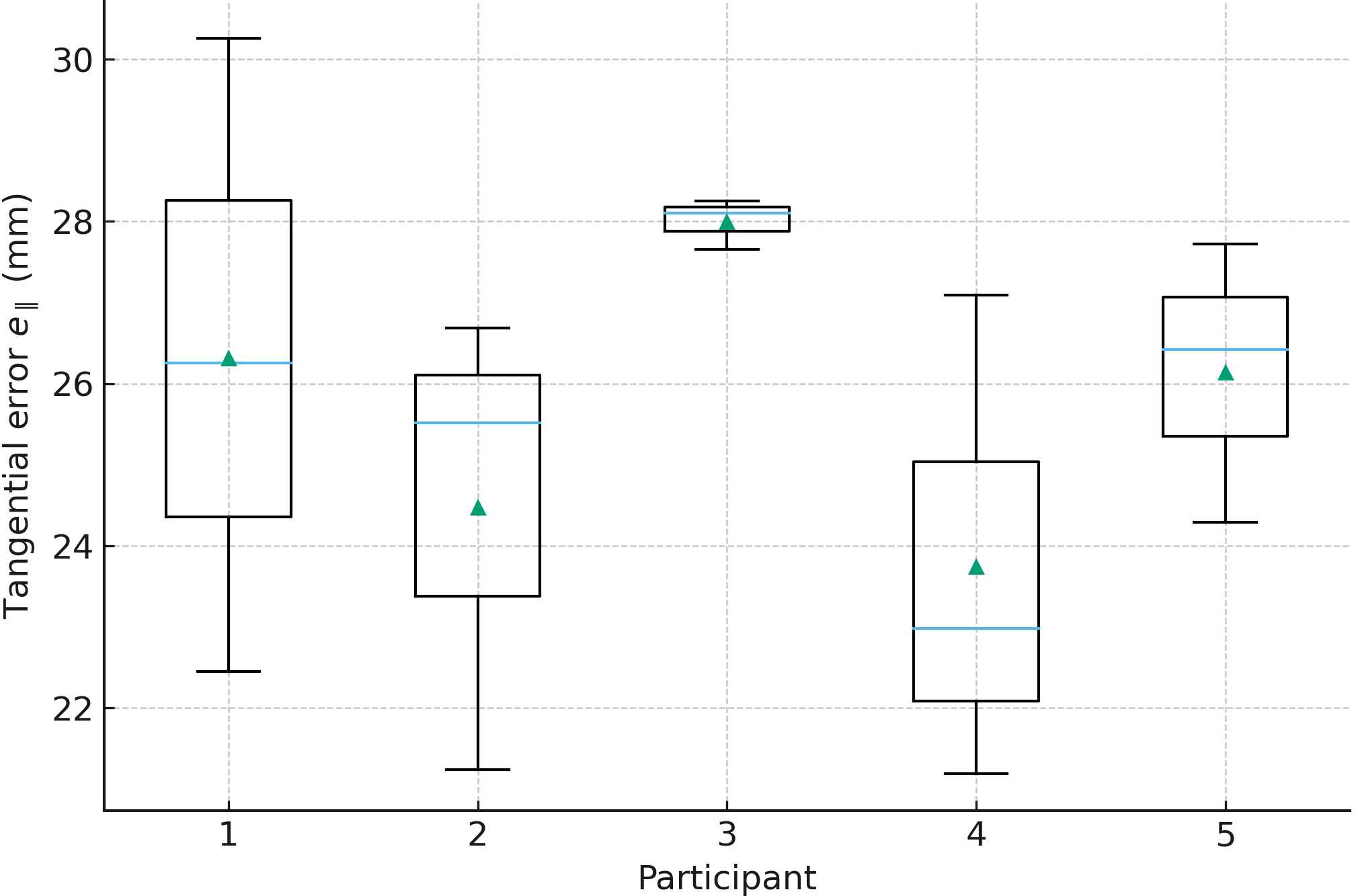

- Human trials achieving 20–30 mm placement accuracy with <4 mm inter-trial variation
Why it matters
Provides a robust, lighting-invariant, and privacy-preserving method to automate probe initialization, reducing operator workload and procedure time in teleoperated cardiac imaging.
Abstract
