SARL: Spatially-Aware Self-Supervised Representation Learning for Visuo-Tactile Perception
Gurmeher Khurana, Lan Wei, Dandan Zhang
AI summary
Problem
Most self-supervised learning frameworks compress visuo-tactile features into global vectors, discarding the spatial structure required for contact-rich robotic manipulation.
Approach
SARL augments the BYOL architecture with three intermediate feature map losses that enforce consistent attention, semantic part composition, and geometric relationships across augmented views.
Key results
- Outperforms nine SSL baselines across six downstream visuo-tactile tasks

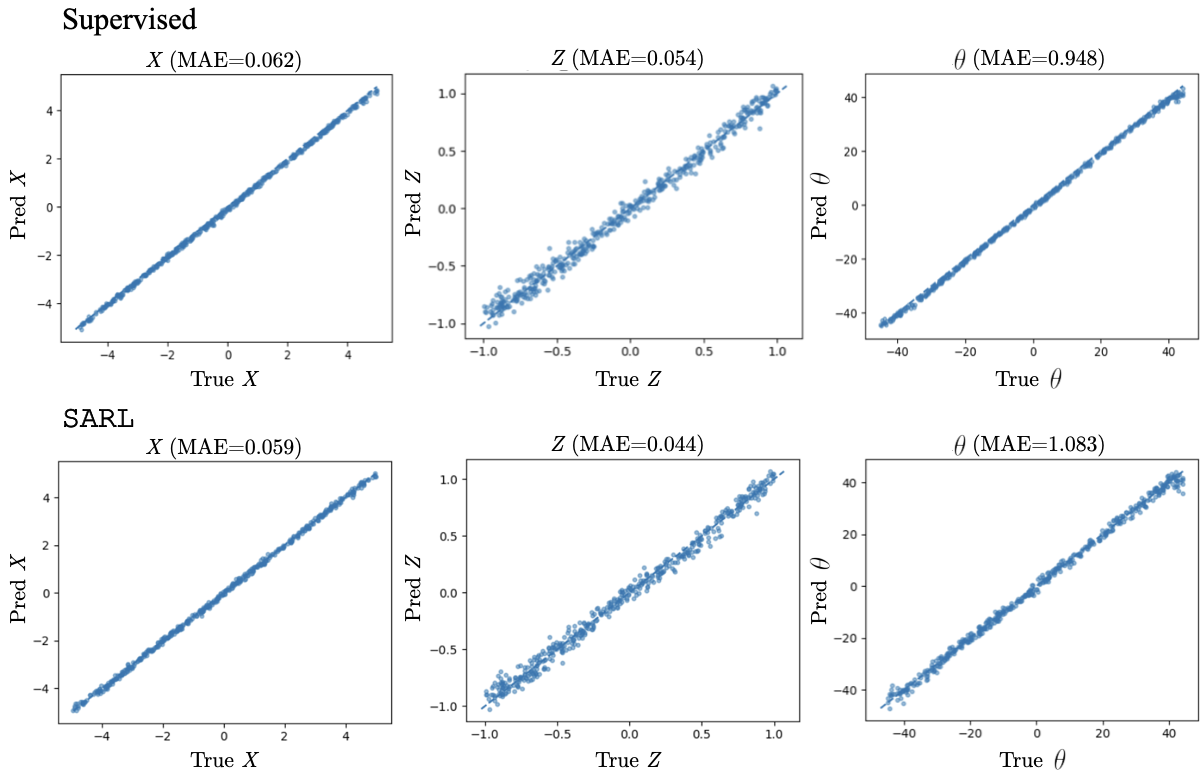

- Achieves 30% relative MAE reduction on edge-pose regression (0.3955 MAE)
- Demonstrates robust transfer to four unseen tactile sensor datasets
- Confirms fused visuo-tactile data and spatial losses outperform unimodal and global-only baselines
Why it matters
Provides a practical, label-free method for learning geometry-aware representations that directly improve robotic dexterity and contact-rich manipulation.
Abstract
Contact-rich robotic manipulation requires rep- resentations that encode local geometry. Vision provides global context but lacks direct measurements of properties such as tex- ture and hardness, whereas touch supplies these cues. Modern visuo-tactile sensors capture both modalities in a single fused image, yielding intrinsically aligned inputs that are well suited to manipulation tasks requiring visual and tactile information. Most self-supervised learning (SSL) frameworks, however, com- press feature maps into a global vector, discarding spatial struc- ture and misaligning with the needs of manipulation. To address this, we propose SARL, a spatially-aware SSL framework that augments the Bootstrap Your Own Latent (BYOL) architecture with three map-level objectives, including Saliency Alignment (SAL), Patch-Prototype Distribution Alignment (PPDA), and Region Affinity Matching (RAM), to keep attentional focus, part composition, and geometric relations consistent across views. These losses act on intermediate feature maps, complementing the global objective. SARL consistently outperforms nine SSL baselines across six downstream tasks with fused visual-tactile data. On the geometry-sensitive edge-pose regression task, SARL achieves a Mean Absolute Error (MAE) of 0.3955, a 30% relative improvement over the next-best SSL method (0.5682 MAE) and approaching the supervised upper bound. These findings indicate that, for fused visual–tactile data, the most effective signal is structured spatial equivariance, in which features vary predictably with object geometry, which enables more capable robotic perception.
