VSL-Skin: Individually Addressable Phase-Change Voxel Skin for Variable-Stiffness and Virtual Joints Bridging Soft and Rigid Robots
Zihan Oliver Zeng, JIAJUN AN, Preston Luk, Upinder Kaur
AI summary
Problem
Soft robots lack structural rigidity and pose retention, while rigid robots sacrifice adaptability; existing variable-stiffness systems operate at coarse patch scales, preventing precise spatial control over stiffness distribution and joint placement.
Approach

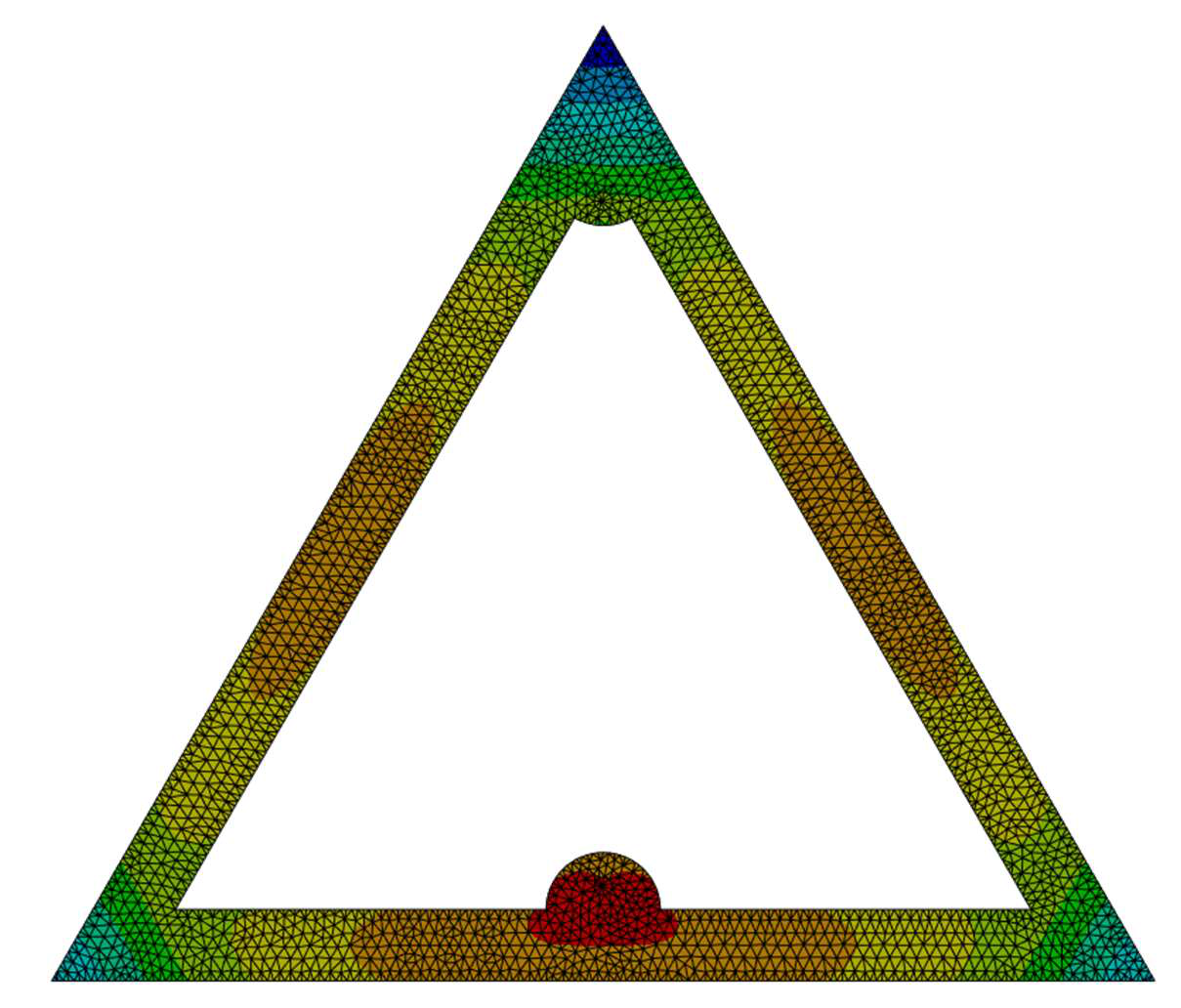

A conformal triangular lattice skin integrates individually controllable voxels with embedded heaters and low-melting-point alloys, allowing selective thermal switching to dynamically tune local stiffness and create programmable virtual joints.
Key results
- Nearly two orders of magnitude stiffness modulation across axial, shear, bending, and torsional modes
- First demonstration of 30% axial compression in phase-change systems while maintaining structural integrity
- Autonomous component-level self-repair through thermal cycling that eliminates fatigue accumulation
- Creation of six canonical virtual joint types with programmable compliance via selective voxel activation
Why it matters
Provides a platform-agnostic, retrofit-able framework for dynamically reconfigurable robotics, bridging the compliance-rigidity trade-off for advanced manipulation and adaptive locomotion.
Abstract
Soft robots exhibit compliance but lack load sup- port and pose retention, while rigid robots provide structural capacity but sacrifice adaptability. Existing variable-stiffness approaches operate at segment or patch scales, preventing pre- cise spatial control over stiffness distribution and virtual joint placement. This paper presents the Variable Stiffness Lattice Skin (VSL-Skin), the first system enabling individually address- able voxel-level morphological control with centimeter-scale precision. The system achieves three capabilities: nearly two or- ders of magnitude stiffness modulation across axial (15 −1200 N/mm), shear (45 −850 N/mm), bending (8 × 102 −3 × 104 N/deg), and torsional modes with centimeter-scale spatial con- trol; the first demonstrated 30% axial compression in phase- change systems while maintaining structural integrity; and autonomous component-level self-repair through thermal cy- cling that eliminates fatigue accumulation and enables pro- grammable sacrificial joints for predictable failure manage- ment. Selective voxel activation creates six canonical virtual joint types with programmable compliance while preserving structural integrity in non-activated regions. The platform incorporates closed-form design models and finite element analysis for predictive synthesis of stiffness patterns and joint placement. Experimental validation demonstrates 30% axial contraction, thermal switching in 75 second cycles, and cut-to- fit integration that preserves addressability after trimming. The row-column architecture enables platform-agnostic deployment across diverse robotic systems without specialized infrastruc- ture. This framework establishes morphological intelligence as an engineerable system property, fundamentally advancing autonomous reconfigurable robotics.
