Integrating Autonomy into Bioinspired Soft Robot � the Bionic Turtle Walker
Falk Tauber, Sebastian Ruppert, Thomas Speck
AI summary
Problem
Electronic-free soft robots currently lack environmental feedback systems and the computational power to process sensory inputs, limiting their autonomy and adaptability in changing environments.
Approach
The researchers designed a bioinspired soft turtle walker with a monolithically 3D-printed body, integrated pneumatic logic gates, and a soft pneumatic contact sensor that computes environmental cues to reverse its motion without electronics.
Key results

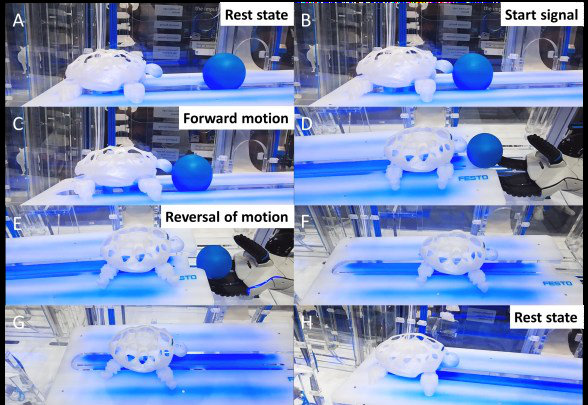

- Integrated pneumatic logic circuit computes soft sensor inputs to reverse walking direction
- Bioinspired diagonal trot-like gait design achieves 30 mm ground clearance and stable 4-legged locomotion
- Demonstrated robust operation over 17,500 cycles at Hannover Messe 2025 with only 4 module failures
- Fully 3D-printed monolithic construction enables complete integration of actuation, control, and sensing
Why it matters
This work provides a practical pathway toward fully autonomous, adaptable soft robots for hazardous or human-centric environments where traditional electronics would fail.
Abstract
Drawing inspiration from living nature for soft robots enables scientist to develop bioinspired systems with more efficient motion and control schemes in comparison to classical robotic system. Because of their inherent compliance due to bodies from flexible materials are soft robots ideal for human machine interaction. With novel electronic free pneumatic logic control systems these robots can be built entirely soft and cope with changing or extreme environments, in which classical electronic robots would fail. Such electronic free control systems allow the control to be integrated directly into the body of the soft robot. Widely still lacking are feedback systems enabling the robot to change its behavior in response to environmental cues. In study we highlight an advanced integrated pneumatic control system that coupled with a soft pneumatic sensor is able to change the walking behavior of our turtle walker. Our novel bioinspired soft robot with an integrated pneumatic logic control system capable of computing sensory inputs marks the first step towards integrating autonomy into electronic free soft robots.
