Hydrodynamic Optimization of a Spherical Amphibious Robot's Paddle-Wheel for Effective Water Surface Locomotion
AI summary
Problem
Spherical robots lack effective propulsion mechanisms for agile swimming and struggle with stability during water-land transitions, limiting their use in real-world amphibious applications.
Approach

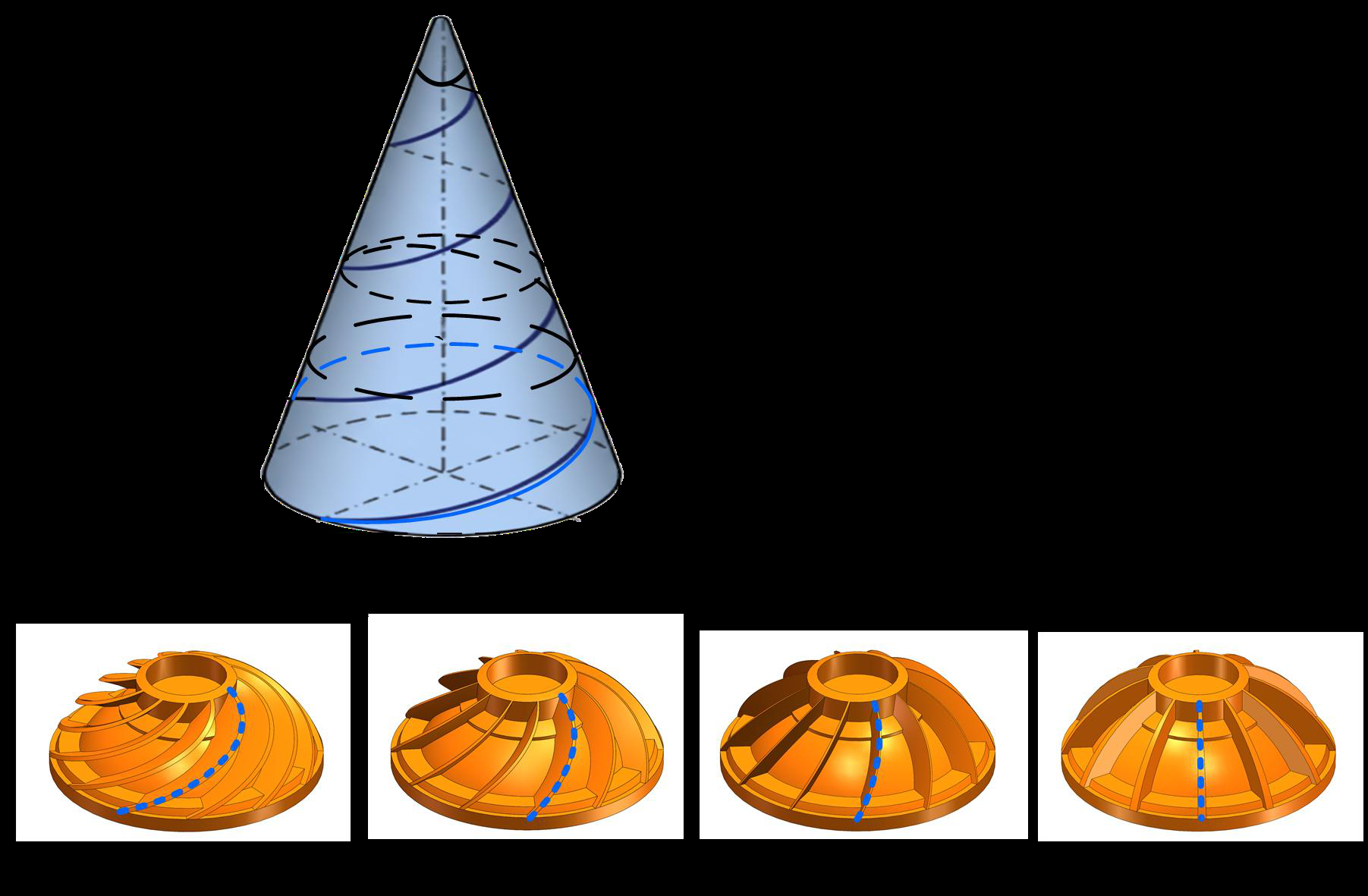

The authors designed a hybrid differential-drive spherical robot with dual paddle-wheel actuators, optimized four helical paddle geometries using multiphase CFD simulations, and validated performance on a custom testbed with a hierarchical cascade controller.
Key results
- Designed a compact amphibious spherical robot with dual paddle-wheel actuators for forward, turning, and arc maneuvers
- Identified Helix-2 helical paddle geometry as optimal through multiphase CFD simulations
- Achieved 51% higher forward thrust and over 160% greater lateral force compared to straight-blade paddles in experiments
- Implemented a hierarchical cascade controller that suppresses pitch oscillations for stable amphibious operation
Why it matters
Provides a practical, energy-efficient propulsion solution for spherical robots operating in confined water-land transition zones for inspection and rescue missions.
Abstract
