Stable Gravity Compensation and 6-DoF Manipulation of a Tethered Magnetic Endoscope with an Optimized End-Effector
Ahmed HOSSAMELDIN, Redwan Dahmouche, Omar Tahri
AI summary
Problem
Static permanent magnets cannot naturally stabilize objects in 3D space, making stable manipulation of tethered medical devices difficult and often requiring complex feedback systems or causing excessive tissue pressure.
Approach
The researchers designed a symmetrical four-magnet end-effector to create a wide 2D magnetic attraction zone that naturally stabilizes the device, while a fixed tether handles gravity compensation and remaining degrees of freedom.
Key results
- Optimized four-magnet design creates >60 mm stable attraction zone
- Robust gravity compensation recovers from >40 mm external disturbances
- Precise 6-DoF tracking demonstrated for tethered endoscopes
- Simulated and experimental magnetic fields validate optimization model
Why it matters
Minimizes friction and tissue pressure during colonoscopy and other minimally invasive procedures by replacing complex active control with a simple, robust passive magnetic stabilization system.
Abstract

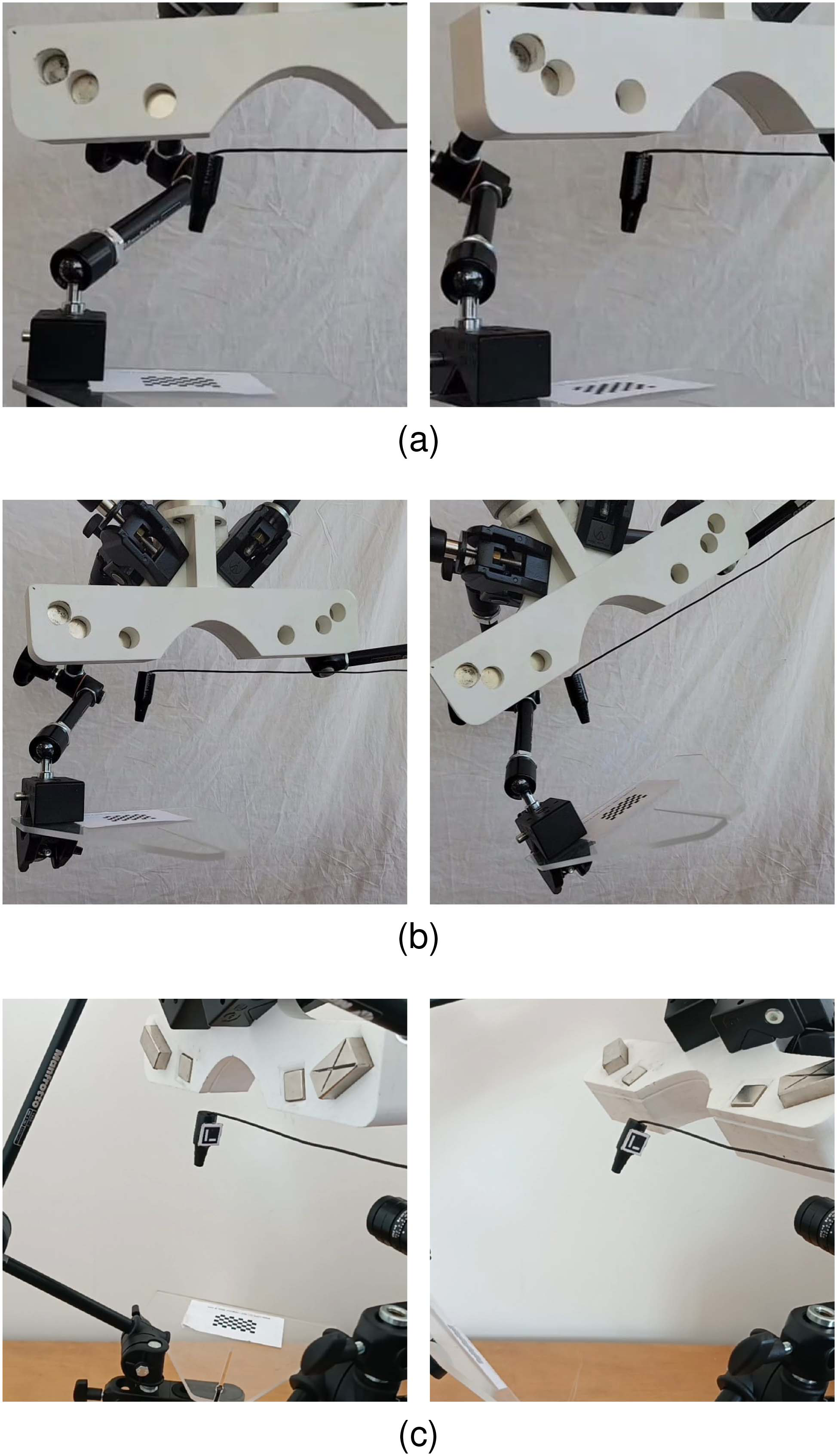

This paper presents the design and experimental vali- dation of a magnetic end-effector optimized for the robust manipu- lation of a tethered magnetic endoscope in six-degrees-of-freedom (6-DoF). The symmetrical end-effector integrates two pairs of per- manent magnets that generate a stable 2D attraction zone with a diameter exceeding 60 mm. This feature enables stable gravity com- pensation and precise control of centimeter-scale magnetic endo- scopes.Experimentalresultsdemonstrate6-DoFmanipulation,sta- bility and robustness against external disturbances, and successful navigation through obstacles in a confined environment. The stable gravity compensation allows to reduce friction and pressure on the endoscope’s environment during navigation, which represent a key advantage for advancing minimally invasive medical procedures in general and colonoscopy in particular where minimizing pressure on the colon is critical. Future work will focus on enhancing the system through active control of the tether’s length.
