Analytical Stiffness Formulation and Interpretation for Six-DOF Tensegrity Joints Using Screw Theory
Robbie Monke, Vishesh Vikas
AI summary
Problem
Traditional Euler angle parameterizations for higher-DOF robot joints suffer from singularities and non-uniqueness, while analytically differentiating the screw-based transformation matrix remains a highly nontrivial challenge.
Approach
The authors derive a closed-form expression for the derivative of the SE(3) transformation matrix with respect to screw coordinates, enabling direct stiffness computation, and decompose the matrix into block, column, and row forms to extract physical insights.
Key results
- Closed-form analytical derivative of the SE(3) transformation matrix with respect to screw coordinates
- Stiffness matrix validated against numerical differentiation with relative errors below 10^-10
- Analytical computation achieves approximately three times faster execution than numerical methods
- Physical interpretation via block, column, and row decompositions reveals coupled translational-rotational stiffness behavior
Why it matters
This framework enables efficient, singularity-free stiffness analysis and paves the way for real-time control and dynamics integration of higher-DOF compliant robotic joints.
Abstract

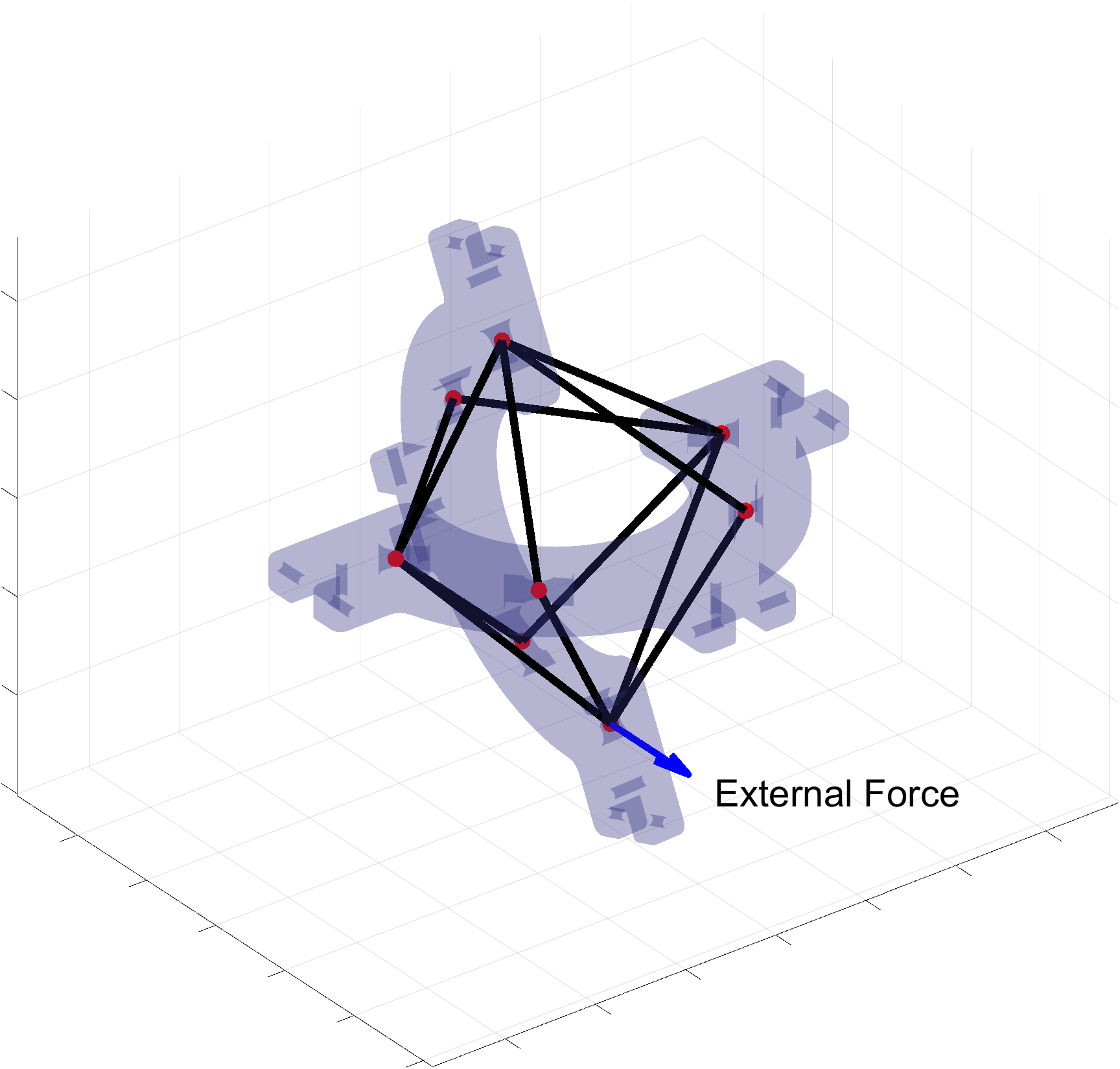

Compliant mechanisms, e.g., tensegrities, in- herently exhibit nonlinear behavior, wherein the stiffness matrix, evaluated at a specific configuration, characterizes the instantaneous relationship between applied forces and resulting displacements. For traditional robot joints, the stiffness matrix is defined using Cartesian and Euler angle parameters. This representation is convenient when the joints display translation or single degree of rotation behavior, e.g., revolute or prismatic joints. However, it faces parameterization issues in modeling higher degree of free- dom joints due to singularities and lack of uniqueness. Lie groups and screw theory representations provide a minimal and intrinsic representation of the rigid body motion. This representation is well suited for tensegrity joints which combine tensile and compressive members and behave as six degree-of-freedom joints. A key challenge in this context is that computing the stiffness matrix necessitates differentiating the transformation matrix (exponential of a screw matrix, i.e., Lie Group) with respect to the screw (Lie algebra), a task that is highly nontrivial. This work derives an analytical formulation of the stiffness matrix for six degree-of-freedom tensegrity joints using screw theory representation, including a closed-form expression for the derivative of the transformation matrix with respect to its screw coordinates. The analytical results are validated against numerical differentiation with agreement to within numerical precision while achieving approximately three times faster computation speeds. Additionally, simulation of the tensegrity subvertebrae was performed applying compressive and rotational loading conditions, confirming accuracy to analytical derivative predictions with errors below 1% and reducing the computation time by a factor of 3. The paper further interprets the stiffness matrix through block-form, column-wise, and row-wise representations, providing additional physical insight into the translational, rotational, and coupled stiffness contributions. These con- tributions establish an efficient framework for the stiffness analysis and lay the foundation for future integration of screw theory methods into Euler-Lagrange dynamics for higher degree-of-freedom robot joints including tensegrity joints.
