Smooth Human-Robot Shared Control for Autonomous Orchard Monitoring with UGVs

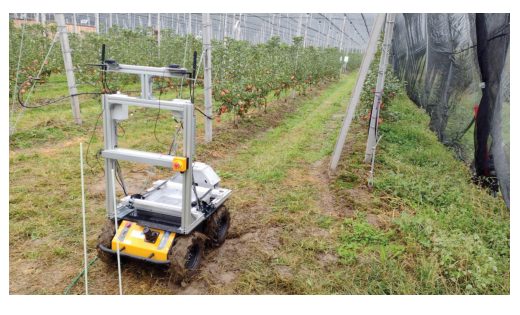

Precision agriculture offers the opportunity to auto- mate routine or difficult tasks in orchards and vineyards, such as spraying or inspection, with Uncrewed Ground Vehicles (UGV). In this context, human operators should be kept in the closed- loop control of the robot for safety and reliability. This work is motivated by the challenges of effectively deploying human- robot shared control in the field. First, an asymptotically stable controller keeps the robot on the desired trajectory between rows of trees, whose distance is on the order of the robot’s width. Second, the robot must efficiently avoid static and moving obstacles on its path. Third, the control inputs must not exceed the actuator limits, which can degrade trajectory tracking per- formance, cause instability, or damage critical hardware. Finally, in real-life scenarios, user intervention is sometimes required to manage unpredictable situations. To overcome these challenges, we propose and deploy a shared controller that continuously and smoothly varies the ratio of human and automatic control inputs depending on the human’s intent, geometrically rescales trajectory inputs to maintain bounded control, and incorporates obstacle avoidance capabilities – all while preserving asymptotic stability of the closed-loop system. Additionally, we introduce a time re-scaling strategy that modifies trajectory evolution, ensuring target positions remain within a defined vicinity of the robot. The system performance was assessed in simulation and in 26 field trials inside an apple orchard using different obstacle configurations, weather, and terrain conditions, with a success rate of 100% and an average tracking error of 0.1 m. Note to Practitioners—The proposed shared control approach is developed for use with a differentially steered Uncrewed Ground Vehicle (UGV) with first order kinematic constraints and Received 4 November 2024; revised 14 February 2025; accepted 20 March 2025. Date of publication 24 March 2025; date of current version 18 April 2025. This article was recommended for publication by Associate Editor X. Li and Editor Z. Li upon evaluation of the reviewers’ comments. This work was sponsored in part by the Autonomous Province of Bolzano, Italy, Recoaro Project under Grant #4122 and in part by the European Commission Horizon Europe Research and Innovation Actions Program Sestosenso Project under Grant 101070310. (Corresponding author: Cheikh Melainine El Bou.) Cheikh Melainine El Bou, Michael R. Chang, and Karl D. von Ellen- rieder are with the Facolt`a di Ingegneria, Libera Universit`a di Bolzano, 39100 Bolzano, Italy (e-mail: cheikhmelainine@ieee.org; mchang@unibz.it; karl.vonellenrieder@ieee.org). Michele Focchi is with the Dipartimento di Ingegneria e Scienza dell’Informazione (DISI), Universit`a di Trento, 38122 Trento, Italy, and also with the Dynamic Legged Systems, Istituto Italiano di Tecnologia (IIT), 16163 Genoa, Italy (e-mail: michele.focchi@ieee.org). Marco Camurri is with the Dipartimento di Ingegneria Industriale (DII), Universit ́a di Trento, 38122 Trento, Italy, and also with the Facolt`a di Ingegneria, Libera Universit`a di Bolzano, 39100 Bolzano, Italy (e-mail: marco.camurri@unitn.it). This article has supplementary downloadable material available at https://doi.org/10.1109/TASE.2025.3554368, provided by the authors. Digital Object Identifier 10.1109/TASE.2025.3554368 can be adapted to different indoor and outdoor scenarios. The environment in which the UGV is deployed should be mapped in advance to create a reference trajectory for the UGV to follow. If the location of obstacles is not known in advance, an obstacle detection and tracking system, as well as an online mapping system, must be developed. A simulated model of the UGV and the environment are useful for determining initial values of the shared control gains that can be further tuned when the physical platform is first deployed. In GPS-denied scenarios, a Simultaneous Localization and Mapping (SLAM) system must be implemented; a lidar-inertial based SLAM system is recommended. A force-reflexive joystick is ideal for sensitive human input. In addition, the communication between the UGV and the base station (where the human operator supervises the UGV and provides commands to it) should have minimal time delays, not exceeding typical human reaction time (ca. 0.25 s).
