STEM: A Soft Tactile Electromagnetic Actuator for Multimodal Haptic Feedback in Virtual Environments
Heeju Mun, Seung Mo Jeong, Sein Lim, Seunggyeom Jung, Ki-Uk Kyung
AI summary
Problem
Conventional wearable haptic devices are often bulky, poorly wearable, or limited to single-mode feedback, hindering immersive virtual reality experiences.
Approach
The researchers designed a finger-worn electromagnetic actuator that uses soft polymer materials for energy storage and encapsulation, enhanced by magnetic reinforcements to minimize flux leakage and amplify out-of-plane deformation.
Key results
- Generates force, impulse, and vibration stimuli with a 25 Hz bandwidth
- Achieves 0.4 N max force, 0.63 mm protrusion, and ~1250 m/s² peak acceleration

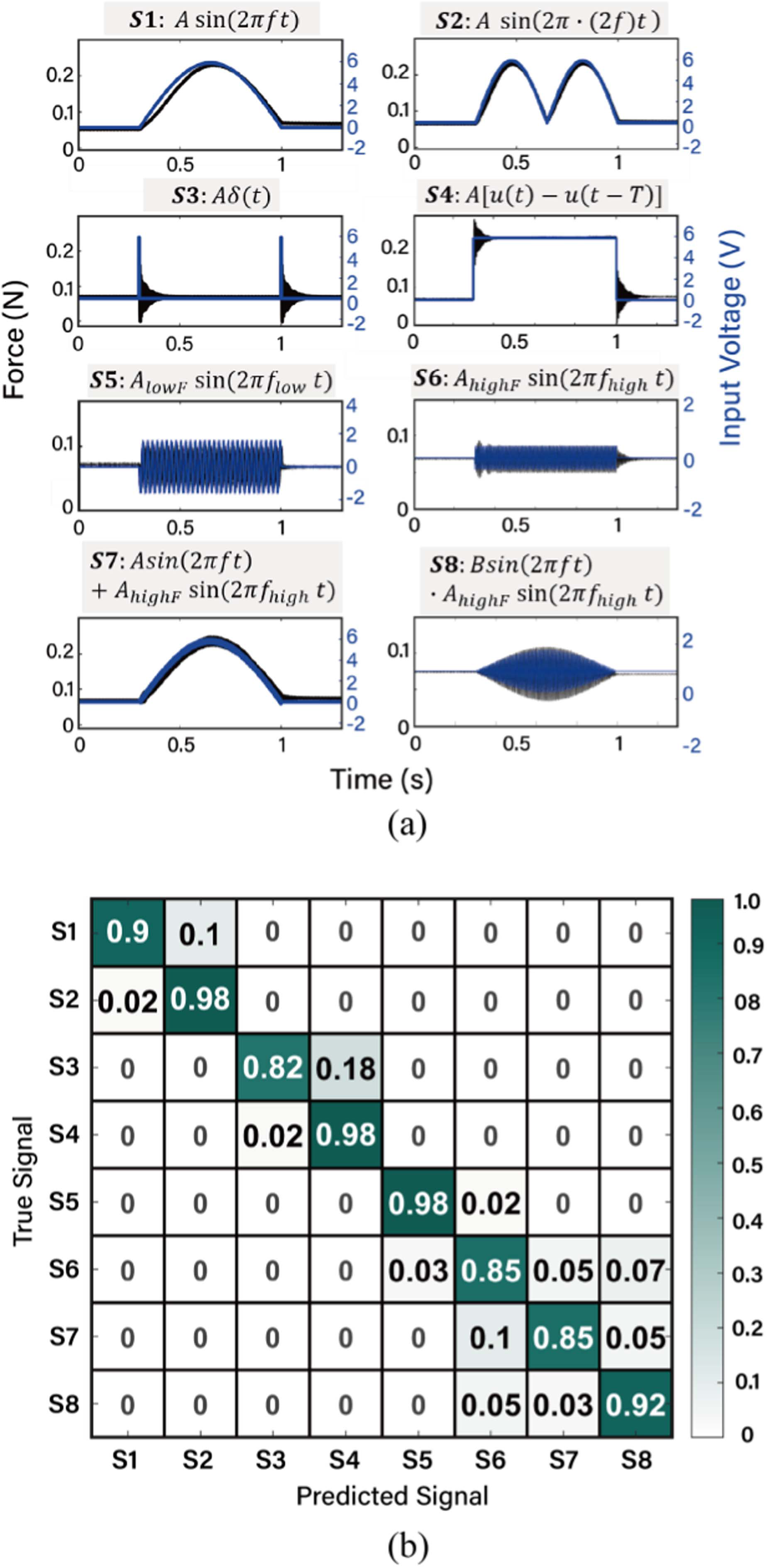

- Users correctly identified eight distinct tactile signals with 91% average accuracy
- Demonstrates fast 44.6 ms response time with safe thermal performance
Why it matters
Provides a compact, highly wearable solution for delivering rich tactile feedback, advancing immersive and intuitive virtual reality applications.
Abstract
This study introduces the soft tactile electromagnetic (STEM) actuator, a compact and wearable haptic device designed to deliver multimodal tactile feedback in virtual environments. The actuator employs soft materials as both an energy-storing and en- casing structure, enabling out-of-plane deformations in response to arbitrary input signals while ensuring high wearability. Magnetic reinforcements, including a soft magnetic cap and a ferromagnetic pole piece, minimize magnetic flux leakage, effectively amplifying output force along with protrusion to enable precise and varied haptic feedback. The actuator generates multimodal tactile stimuli, including force, impulse, and vibration, surpassing conventional vi- brotactile devices in delivering more varied and dynamic feedback. Experimental evaluation of the actuator’s mechanical performance demonstrates its ability to produce both low- and high-frequency tactile feedback. A user study evaluating perception thresholds and signal recognition accuracy found that participants identified eight distinct tactile signals with an average accuracy of 91%, confirming the actuator’s capacity to deliver distinguishable mul- timodal feedback. These findings underscore the feasibility of the STEM actuator for immersive haptic interactions and highlight its potential applications in virtual reality.
