Nonlinear Model Predictive Control for Robotic Pushing of Planar Objects with Generic Shape
Sara Federico, Marco Costanzo, Marco De Simone, Ciro Natale
AI summary
Problem
Manipulating objects in cluttered, dynamic scenes requires precise, time-constrained pushing that maintains contact despite shape variability and occlusions, which traditional linear or hybrid controllers struggle to handle.
Approach
The method uses B-splines to model arbitrary object contours and formulates a continuous nonlinear MPC that directly optimizes pusher velocity while adapting tangential speed limits based on local curvature to prevent contact loss.
Key results
- B-spline contour parameterization for arbitrary planar shapes
- Continuous NMPC eliminating mixed-integer contact switching
- Real-time solver execution on physical hardware
- Superior tracking and disturbance rejection versus linear MPC
Why it matters
Provides a robust, model-based control framework for autonomous non-prehensile manipulation in complex, time-sensitive robotic tasks.
Abstract

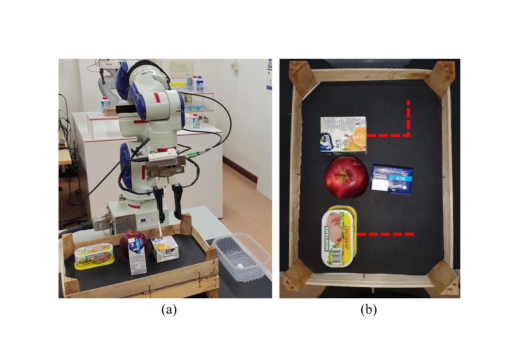

Robotic manipulation of objects in cluttered dynamic scenes is challenging for a twofold reason. Object detection and localization are complex due to partial occlusions and high vari- ability in the object classes and manipulation in tight spaces is difficult due to potential collisions. The present letter focuses on the low-level control of the non-prehensile pushing action aimed at moving planar objects of generic shape along a given path with an assigned time law. Based on the continuous and nonlinear dynamics of the system, we propose a nonlinear model predictive controller (NMPC), which avoids the need for linearization and, thus, the hybrid dynamics arising from it. An extensive comparison with a state-of-the-art linear MPC demonstrates that the NMPC can successfully react to more general disturbances, outperforming the linear one. Experimental results confirm the effectiveness of the method in a task where a robot is required to grasp fruits in a container with other obstructing objects (shown in the attached video).
